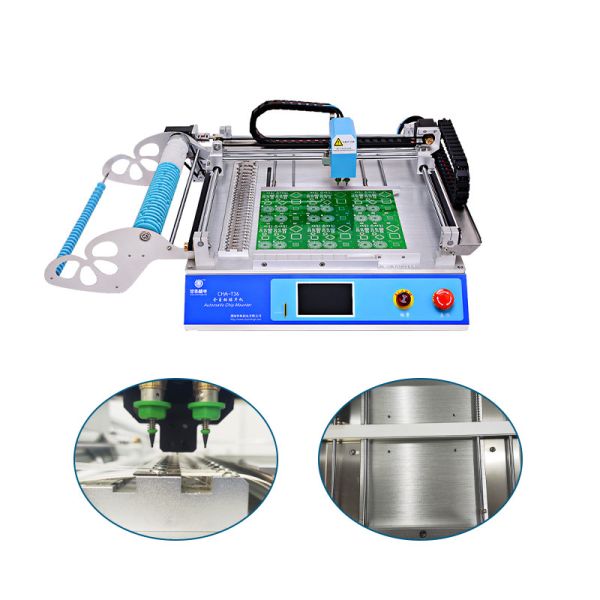

Manual operation LED Pick And Place Machine CHM-T36 6000cph

Name: Manual operation LED Pick And Place Machine CHMT36 6000cph
Brand: Charmhigh
Price: 1 USD

Cheap Manual operation LED Pick And Place Machine CHM-T36 6000cph for sale

Brand Name : Charmhigh

Model Number : CHM-48VA

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 15 work days

Packaging Details : wooden box

Nozzle Change : Manual operation

PCB Size : 10mm(L)×10mm(W)～345mm(L)×410mm(W)

PCB Thickness : 0.6mm~3.5mm

Mounting Speed : 6000cph (optimal)

Mounting Head Quantity : 2

Contact Now

Manual operation LED Pick And Place Machine CHM-T36 6000cph

Dimensions	930mm(L)×690mm(W)×310mm(H)
Weight	37kg
Power Supply	AC220V (50Hz, single phase) / AC110V (60Hz, single phase); 250W
Air Supply	No external air supply required
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	2
Mounting Speed	6000cph (optimal)
Control Accuracy	0.025mm
Component Type	0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	10mm(L)×10mm(W)～345mm(L)×410mm(W)
PCB Conveying	Manual operation
Nozzle Change	Manual operation
Control System	Embedded real-time operating system, 5-inch touch screen
Drive System	X&Y-axis driven by stepping motors; Z-axis capable of reset detection; all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported
Transmission System	Synchronous belt + polished rod
Feeding System	29 tape feeding stacks (8mm:22,12mm:4,16mm:2,24mm:1；customization supported), 8 preset general IC stacks, work surface custom IC trays supported
Positioning Mode	Laser positioning

Q How about the warranty?

A: One year warranty for whole machine and free of charge for spare parts within the warranty period.Free On-line technical support for permanent.

 Q Is it easy to operate?
 A: Yes.It’s simple and easy to operate.. We provide English manual and guide video to show you how to use and We assure our timely support until you can control the machine.

 Q.Payment Term?
 A:We accept:T/T, VISA, PAYPAL, WEST UNION, BANK TRANSFER, ONLINE BANK PAYMENT.

 Q:How about the quality certificate?
 A: We havepassed CE certificate, ISO9001(IQNET) and have own patent.

 Q: Which language is the software? Do you provide software updates?
 A:English or Chinese. Free to upgrade software for lifetime
