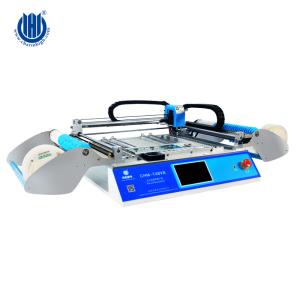

Two Cameras Smd Led Production Line SMT Pick And Place Machine CHM-T48VB, Visual Smt Pick And Place Machine, 58 Feeders
| CHM-T48VB Specifications |
| Dimensions | 1310mm(L)×710mm(W)×340mm(H) |
| Weight | 49kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W |
| Air Supply | No external air supply required |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 2 |
| Mounting Speed | 6000cph(optimal without vision detection); 4000cph (optimal with vision detection) |
| Control Accuracy | 0.025mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～345mm(L)×360mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer(embedded Linux operating system), 7-inch touch screen |
| Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported |
| Transmission System | Synchronous belt + polished rod +linear guide |
| Feeding System | 58 tape feeding stacks(8mm:44,12mm:8；16mm:4,24mm:2；customization supported), 14 preset general IC stacks, work surface custom IC trays and stick feeder supported |
| Vision System | Up-looking camera for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
Our company's pick and place machine software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.
FAQ:
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Does your machines have quality certificate?
A:Charmhigh already owns 24 property rights, including 22 national patents and two software copyrights, and has passed ISO quality management system certification, EU CE certification, ROHS certification, and US FCC, SGS and other international certifications.
Q:What's the way of shipping?
A:DHL,federal,by sea
