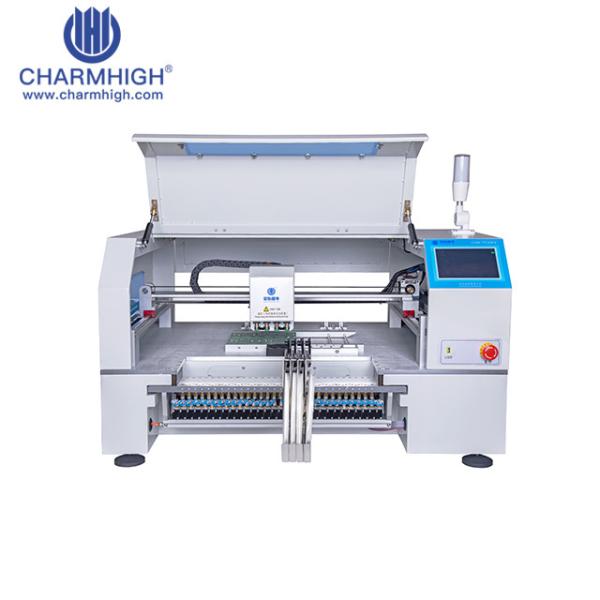

4-Head Small-Sized Vision Pick And Place Machine SMT Factory CHM-T530P4 Pcb Card Assemble Line
Real mounting speed can up to 5500CPH
Improve efficiency and work more easily
Operating system self development and reserched
Humanization simple and easy to learn.
Real mounting speed can up to 5500CPH
Improve efficiency and work more easily
Fully automatic visual SMT pick and place machine
30 feeder base/ 4 heads mounting/ suitable for conventional resistance capacity
1.Driving system
STEP-SERVO MOTOR
Closed-loop control positioning is more stable
Lower calorific value ,out of step,lower noise, large torque
smooth and accuracy high-speed response
2.Linear guides
High precision,lower noise,long life span,high resistance for bending deformation.UM level positioning accuracy can be reached
3.Importing synchronous belt
High resistance of abrasion aging and deformation
suitable for high torque transmission
Support PCB designing software
man-machine interface interactive
automatic mark calibration
PCB Board Mounting
Support MAX size 400*330mm
applicable for different kinds of technology of PCB mounting
600*300mm can be customized
Feeding method
compatible yamaha electrical feeders
Support 30 yahama feeders,tubular vibration feeder/IC tray/front bulk tray
Double vision calibration
1,Automatically adjust to ensure the mounting accuracy
2.Double calibration can accurately mount IC devices.
3.Automatically correct feeding error.
4.Using industrial high precision CCD to collect IC pins,more accurate calculation.
UP-looking camera. Picking error can be adjusted automatically, accurately identify the smallest 0402 and the 0.5mm pin gap
Down-looking camera. Identify mark point position&pick location automatically. calibrate PCB abnormal, set up identifying of PCB one by one.
Heads mounting : 2 heads picking at the same time
4 independant rotary motors can mount at any angle.Z axis route length 15MM, applicable for special height of component's mounting
Integrated Industrial control
Built-in industrial computer,embedded Linux operating system
Screen touched operation (with the mouse) more capatible more simply
